In 2026, shale development remains the dominant source of US oil and gas growth, but casing integrity continues to be one of the most persistent and costly challenges in horizontal wells particularly in high-density infill drilling programs (Permian, Eagle Ford, Bakken, Haynesville, and emerging plays like SCOOP/STACK). Casing deformation, cement sheath failure, and sustained casing pressure (SCP) are leading causes of non-productive time (NPT), lost production, and regulatory scrutiny.
This technical blog examines the primary failure modes in 2026 shale wells, their root causes, diagnostic methods, and the latest mitigation strategies being deployed by operators.
1. Casing Deformation Modes : Casing deformation in shale wells is now recognized as a geo mechanical – operational problem, driven by.
- Shear deformation : Dominant mode; caused by fault reactivation or stress shadowing from nearby frac stages. Displacement can reach 0.5–2 inches laterally, creating dog-legs or “S”-shapes.
- Collapse / ovalization : Localized external pressure from formation creep, depletion, or frac hit-induced stress changes.
- Connection failure : Thread jump-out, galling, or seal loss under combined compression, torque, and cyclic pressure during fracturing.
- Erosion / wear : Tool joint hard banding or high-velocity proppant during long-term production.
This illustration shows the main casing deformation modes observed in shale wells (shear, collapse, ovality, and connection failure):
2. Cement Sheath Failure MechanismsEven when casing survives, the cement sheath often fails, creating pathways for gas migration, SCP, and sustained inter-zonal communication.
- Micro-annulus formation :De-bonding at casing-cement or cement-formation interface due to pressure/thermal cycling, shrinkage during setting, or poor mud removal.
- Radial cracking : Shear failure from hoop stress changes during fracturing or depletion.
- Channeling : Poor displacement during cementing leads to continuous vertical channels.

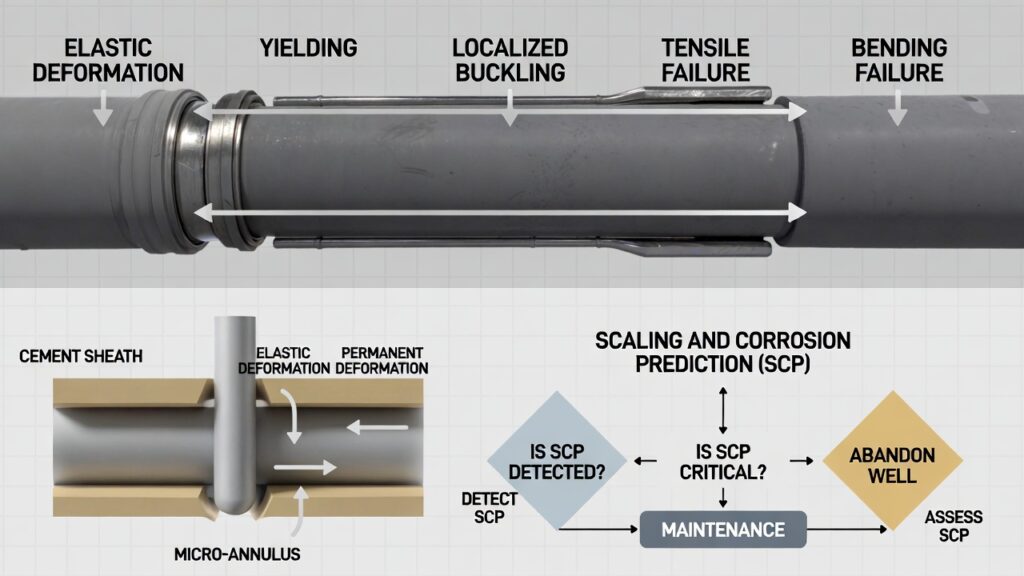

This diagram illustrates micro-annulus formation and radial cracking in the cement sheath (casing-cement and cement-formation interfaces)
3. Sustained Casing Pressure (SCP) Diagnostic Flowchart SCP pressure in the annulus that rebuilds after bleed-down is a key indicator of barrier failure. In 2026, operators use structured diagnostic workflows to determine root cause and risk.
This flowchart shows the typical SCP diagnostic process used in shale operations (2026 standard)
Key steps:
- Bleed-down test – monitor rebuild rate.
- Pressure source identification (thermal, reservoir, tubing leak, casing leak, cement failure).
- Logging (noise/temperature, cement bond log, ultrasonic imaging tool) to locate leak path.
- Risk assessment -MAASP (maximum allowable annular surface pressure) vs. observed pressure.
4. Mitigation Strategies in 2026
Operators are deploying a combination of design, operational, and monitoring improvements:
- Casing design:
- Higher collapse-rated grades (Q125, high-collapse proprietary) in fault-prone areas.
- Premium connections with metal-to-metal seals and higher compression/torque ratings.
- Larger OD casing strings in high-risk zones (e.g., 5½” to 7″ in faulted blocks).
- Cementing:
- Flexible/expansive cements with latex or fiber additives to accommodate strain.
- Optimized spacer/mud displacement; centralization (stand-off >70%).
- Lightweight/foam cement in low-fracture-gradient zones.
- Operational controls:
- Optimized frac sequencing (zipper vs. simultaneous) to minimize stress shadowing.
- Wider well spacing in high-risk geomechanical zones (400–600 ft).
- Real-time geomechanical monitoring during fracking (microseismic + pressure).
- Monitoring & diagnostics:
- Fiber-optic DAS/DTS deployment (permanent or temporary) for SCP detection and frac hit identification.
- Digital twins for casing stress simulation and SCP prediction.
- AI anomaly detection on pressure/temperature data to flag early SCP buildup.
Closing Thoughts
Shale well integrity in 2026 is no longer just a “completion problem” it’s a full life-cycle challenge involving geo mechanics, cementing, casing design, and real-time monitoring. Casing deformation and cement sheath failure remain the top risks, but advanced diagnostics (DAS/DTS, digital twins) and design upgrades are significantly reducing failure rates in Tier 1 acreage.
For drilling and completion engineers, the message is clear: integrate geomechanical modeling, premium equipment, and predictive monitoring from day one.
What casing or cement challenges are you seeing in your shale operations?
Share your experiences in the comments!
